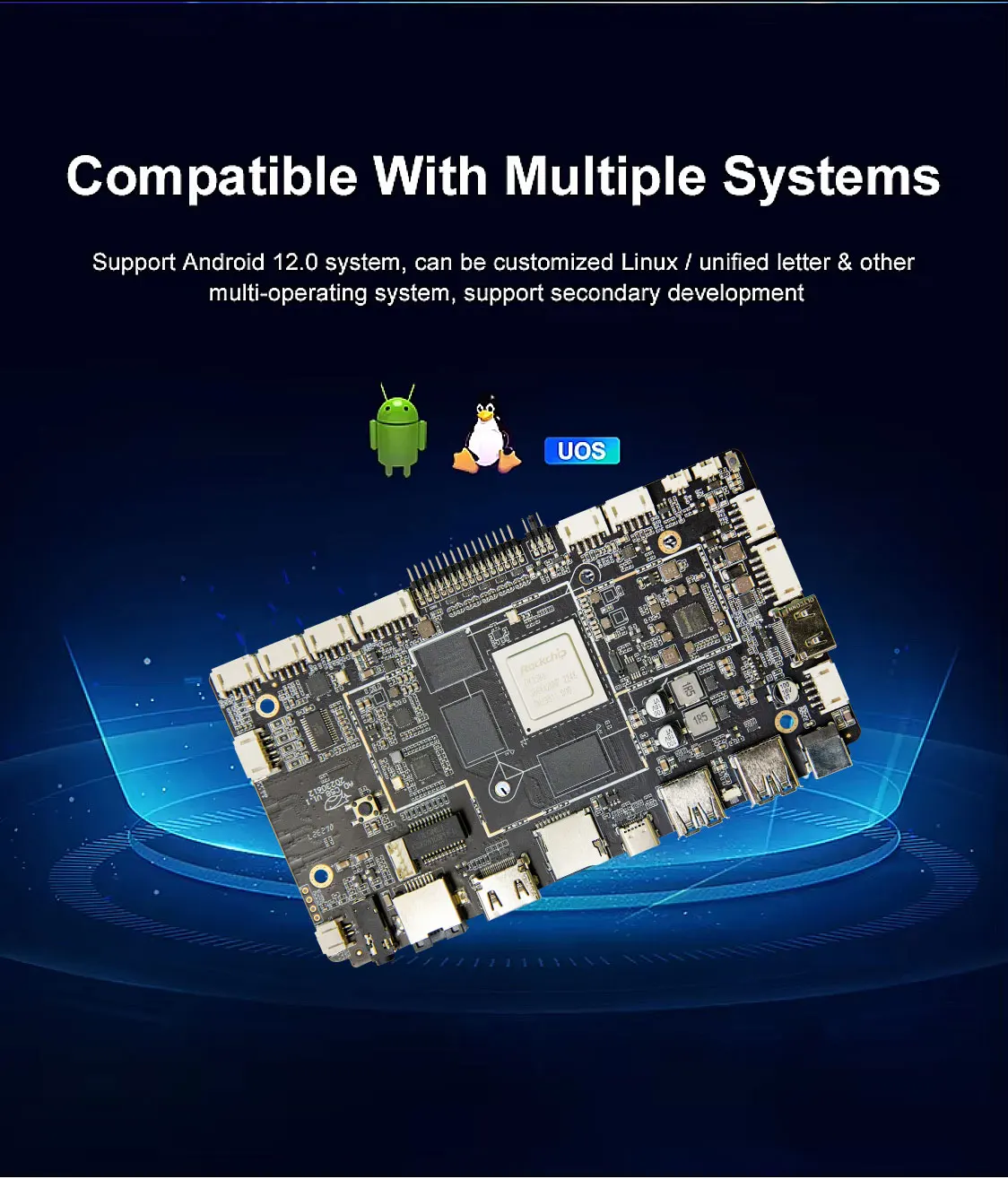

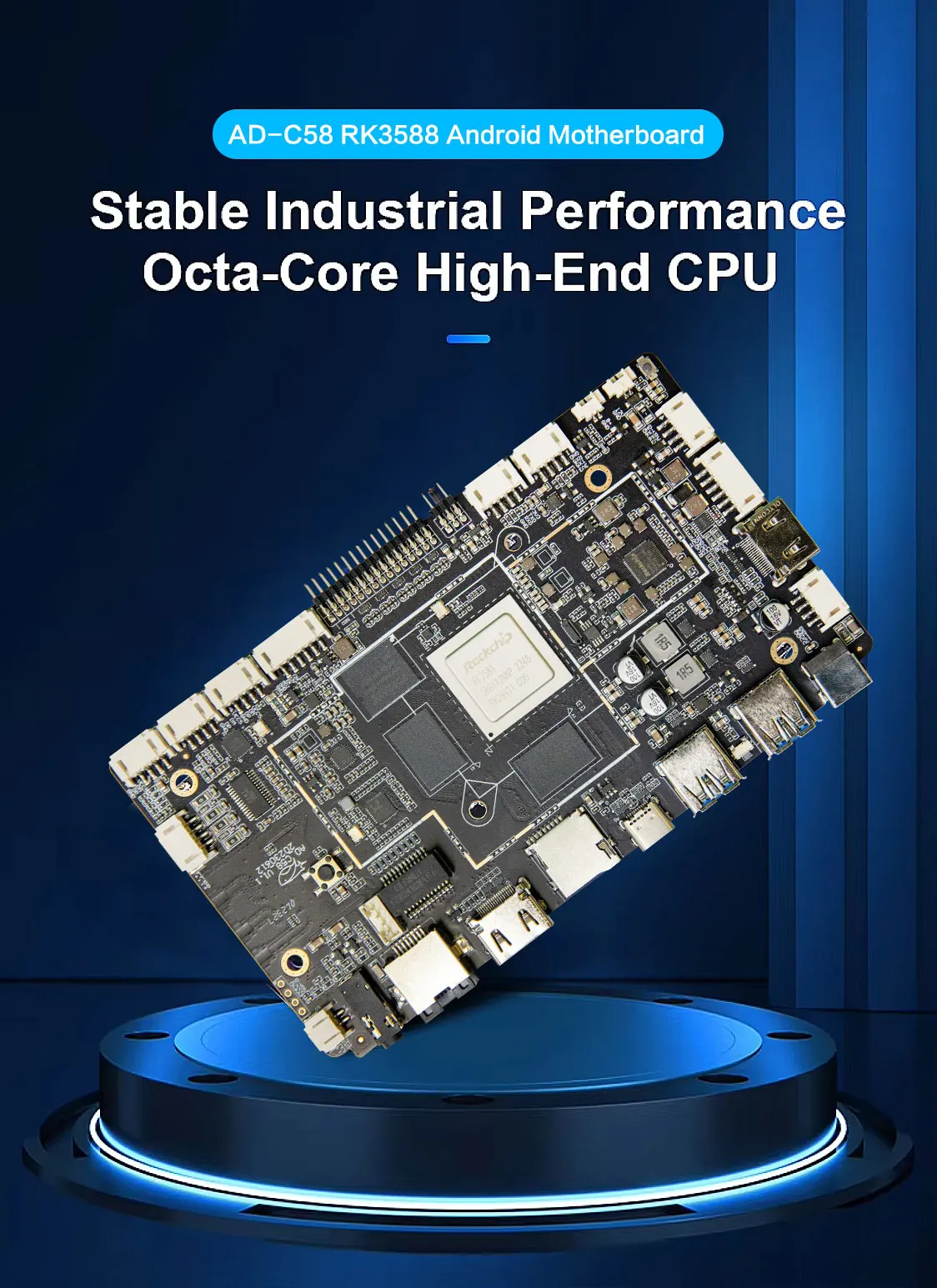

Digital Signage LCD RK3568 Android Motherboard Embedded Arm Board
Key attributes
Other attributes
Product Name
Android 12 RK3588 board
Application
For Kiosk, LCD digital signage device, Media player
WIFI
802.11a/b/g/n/ ac (2.4G/5G optional)
Mobile Network
4G LTE FDD/LTE TDD/WCDMA/GSM (optional)
LCD interface support
LVDS/EDP/MIPI/HD MI/ Type-C
| CPU | Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 |
| Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz |
| GPU | ARM Mali-G610 MC4 |
| OpenGL ES 1.1/2.0/3.1/3.2 |
| Vulkan 1.1,1.2 |
| OpenCL 1.1,1.2,2.0 |
| Embedded high-performance 2D image acceleration module |
| NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios |
| Memory | 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x |
| Built-in storage capacity | EMMC 32G/64G/128G/256G(optional) |

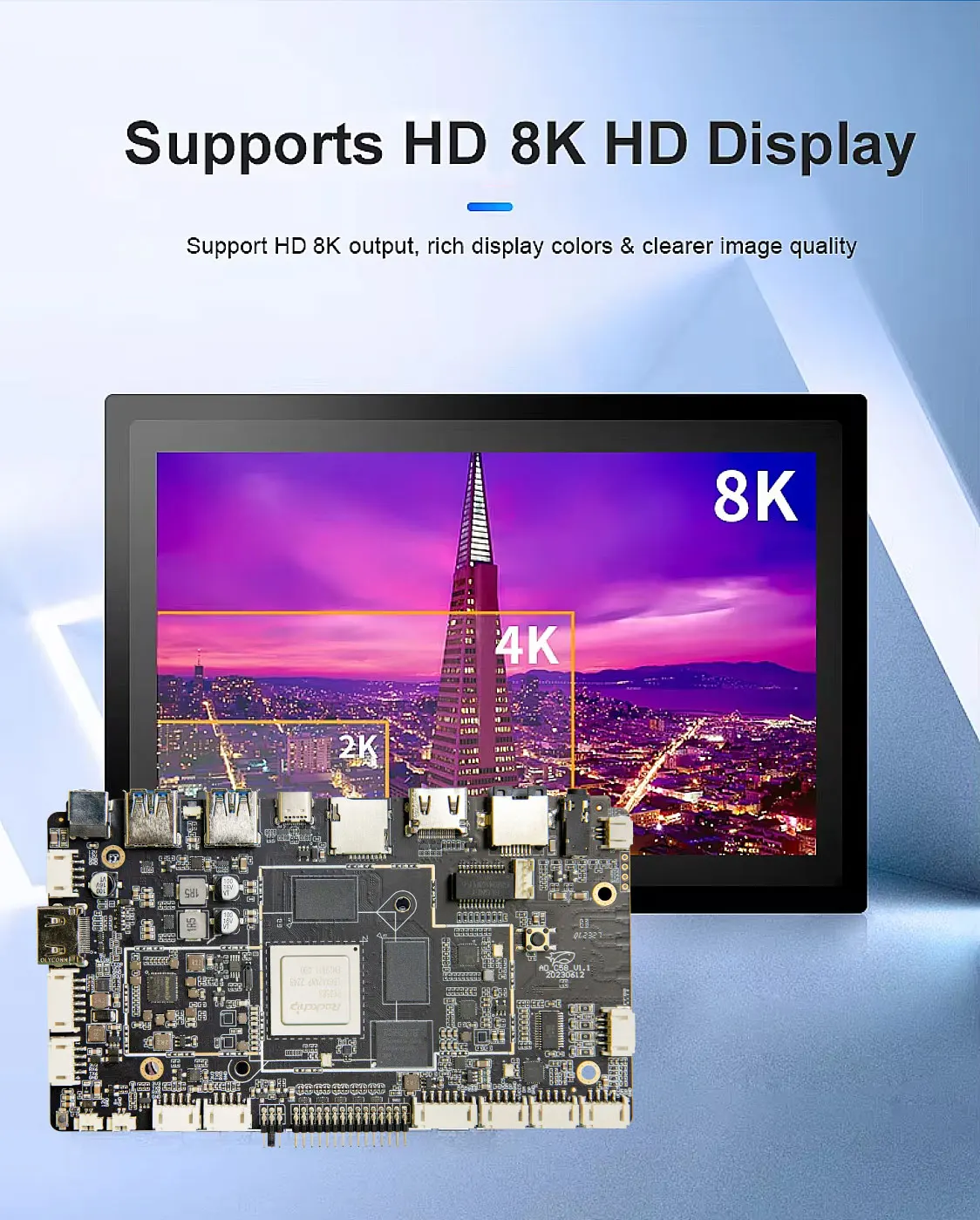

| Display interface | HDMI OUT(Up to 8K@60FPS) |
| HDMI IN(Up to 8K@60FPS) |
| LVDS display interface |
| EDP display interface |
| MIPI display interface |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared
touch, multi-point acoustic wave touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT
5.0 Module |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function |
| Real Time Clock | Built-in real-time clock powered by battery |
| Interface device | Support MIPI interface camera, support 500W pixels |
| 3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals |
| All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
| All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
| 3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) |
| TF card, maximum support 128GB |
| Class D power amplifier: default 3W*2 8 ohms, support microphone |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format |
| Video | Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS
Support H.264/H.265 video encoding, up to 8K30FPS |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions |
| Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) |
WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
About Sunchip
Established in 2011, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider. Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base. Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields. We regards quality as life and already passed ISO international quality system certification ISO9001/ MFi / CE / RoHs / FCC.From raw materials procurement, product production, testing, packaging, marketing and so on each link are carried out in strict accordance with the national standard quality. Sunchip has a over 80 research and development engineers team,high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including USA, UK, Germany, Italy, Japan,Korea, Turkey, Russia, Mexico, Brazil, Thailand ,Middle east and South Africa. Our sales team attends major exhibitions every year to close the distance with customers. Based on the principle of customer first, sales engineers have assisted customers to complete many projects, which are well received by customers. We are looking forward to cooperating, growing and developing with you sincerely.
1.Packing: carton box or wood case 2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
